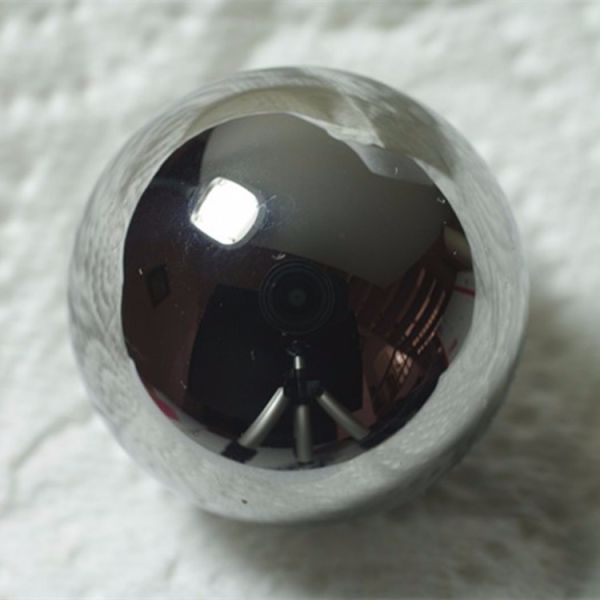

HRC70 Tungsten Carbide Balls High Hardness Polished 1 Inch For Hole Extrusion

Product Categories

Shandong JinNai International Trade Co., Ltd.

Contact Now

Brand Name : JN

Model Number : 25.4mm 1 inch

Certification : ISO SGS

Place of Origin : China

MOQ : 500kg

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 10tons per week

Delivery Time : 7-15 days

Packaging Details : Ploy bag+25kg carton box+1000kg wooden box

Product Nam : Polished Tungsten Carbide Ball

Size Range : 0.3mm-90mm

Surface : Highly Polished

Material : YG6 WC20 YN6

Feature : Good wear resistance

Application : Hole Extrusion

Contact Now

HRC70 High Hardness Polished 1 Inch Tungsten Carbide Balls For Hole Extrusion

Tungsten Carbide with Ni binder (6%) balls, they show slightly worse mechanical characteristics

but better corrosion reistance properties with respect to the Cobalt binder tungsten carbides.

Virgin powder is always used.

Physical / mechanical / thermal / electric / magnetic properties

Property	Symbol	U.o.M.	Type	Notes	Values
Density	δ	[g/cm3]	Physical	Room temp.	14.95
Young's modulus	E	[GPa]	Mechanical	-	620
Specific heat	c	[J/kg-K]	Thermal	Room temp.	212
Coefficient of linear thermal expansion	α	[10^-6/ºC]	Thermal	(ΔT=0-100°C)	5.9
Thermal conductivity	λ	[W/(m·K)]	Thermal	Room temp.	92.0
Electric resistivity	ρ	[Ωm10^-9]	Electric	-	185
Relative magnetic permeability	µ	-	Magnetic	Slighlty ferrom.	max 3.00

Technical data

Property	Type	U.o.M.	Values	U.o.M.	Values
Grain size	Physical	[µm]	~ 1.4	-	-
Hardness	Mechanical	[HRA]	89.0 - 91.0	[HV]	1400 - 1700
Ultimate compressive strength	Mechanical	[MPa]	4900 - 5200	[psix10^3]	711 - 754
Service temperature	Thermal	[ºC]	-196 / 540	[ºF]	-320.8 / 1004

Corrosion Resistance
Good corrosion resistance in basic and neutral solutions. For acid solutions they resist up to pH 4.
